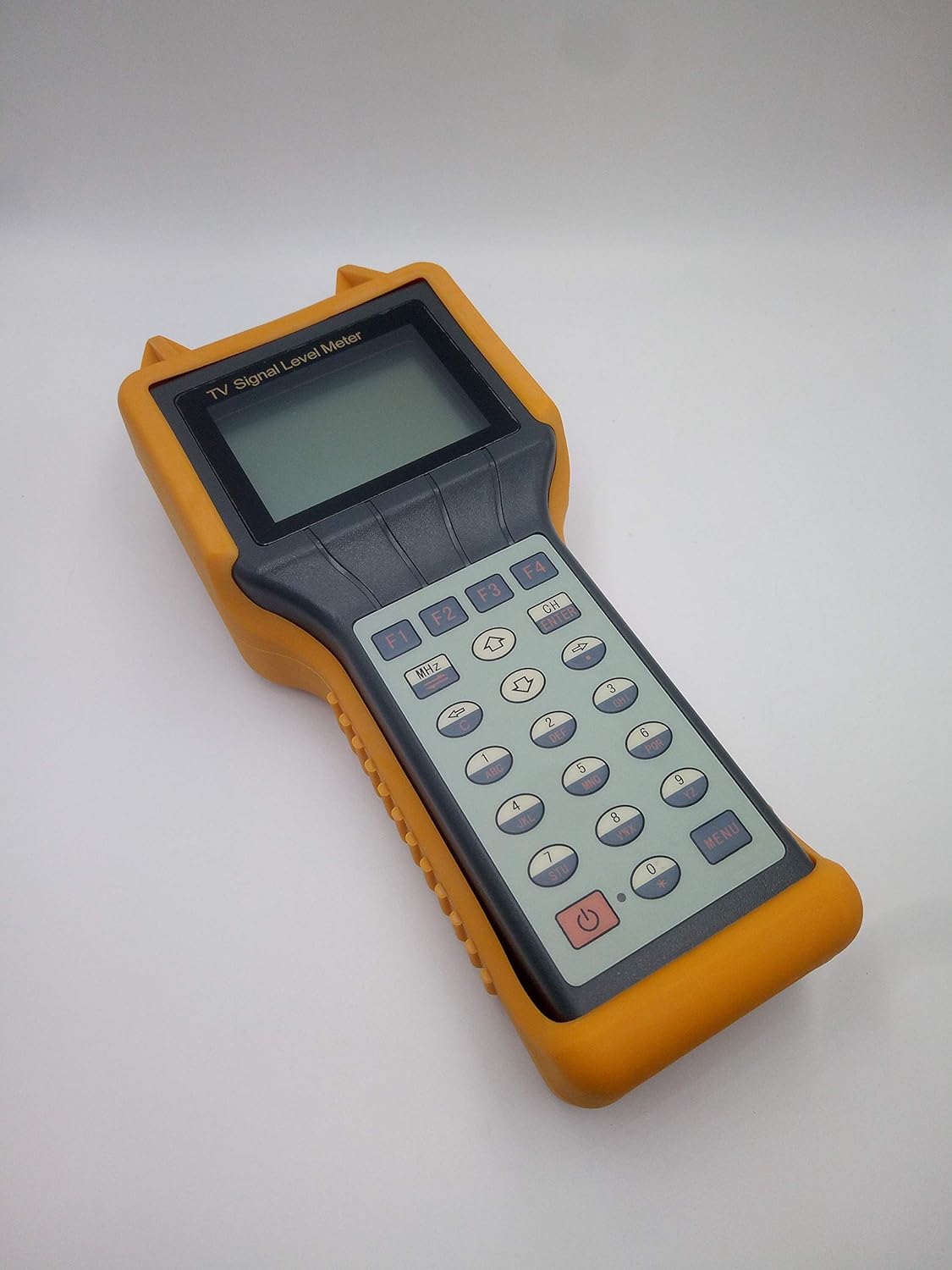

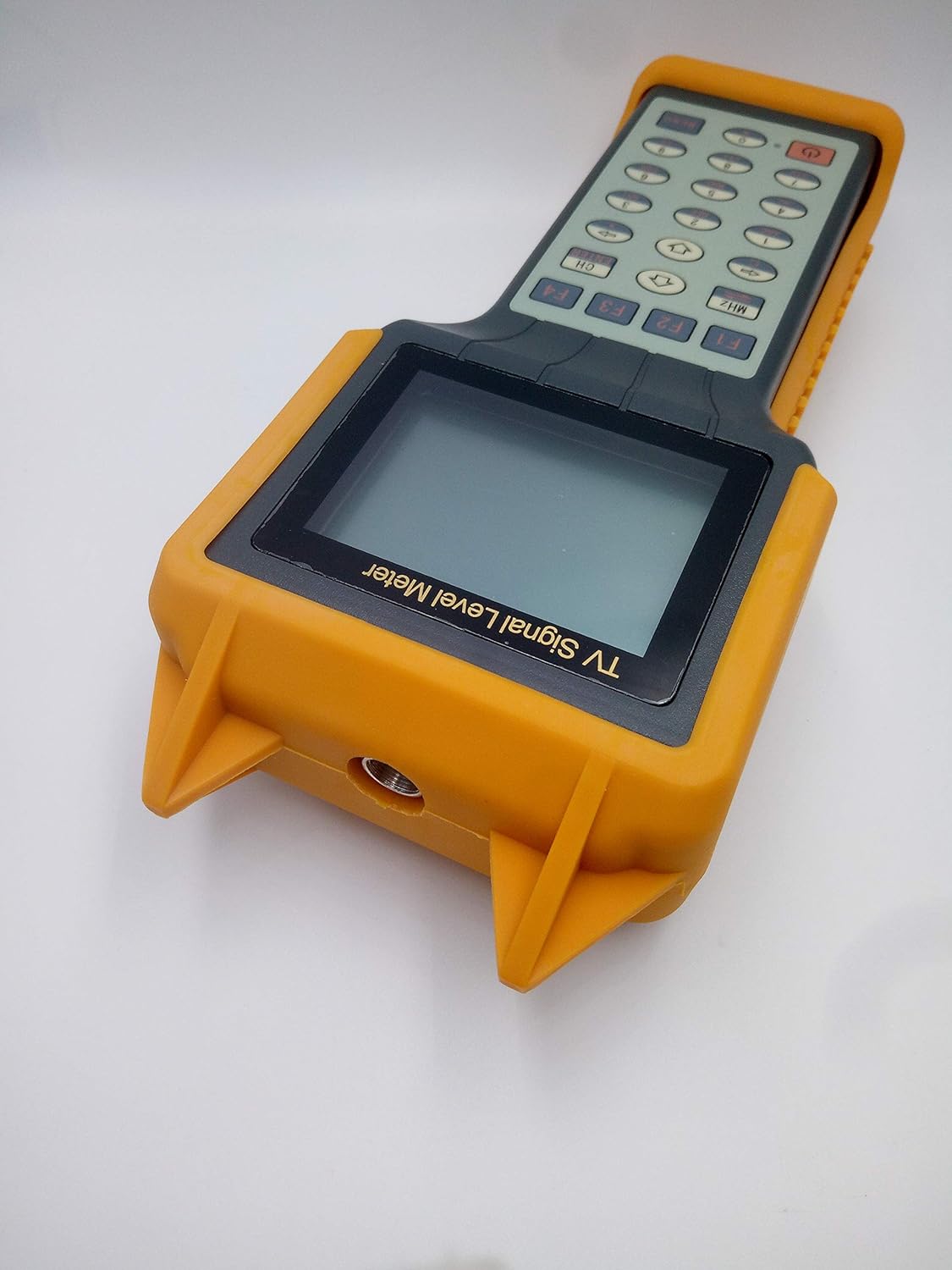

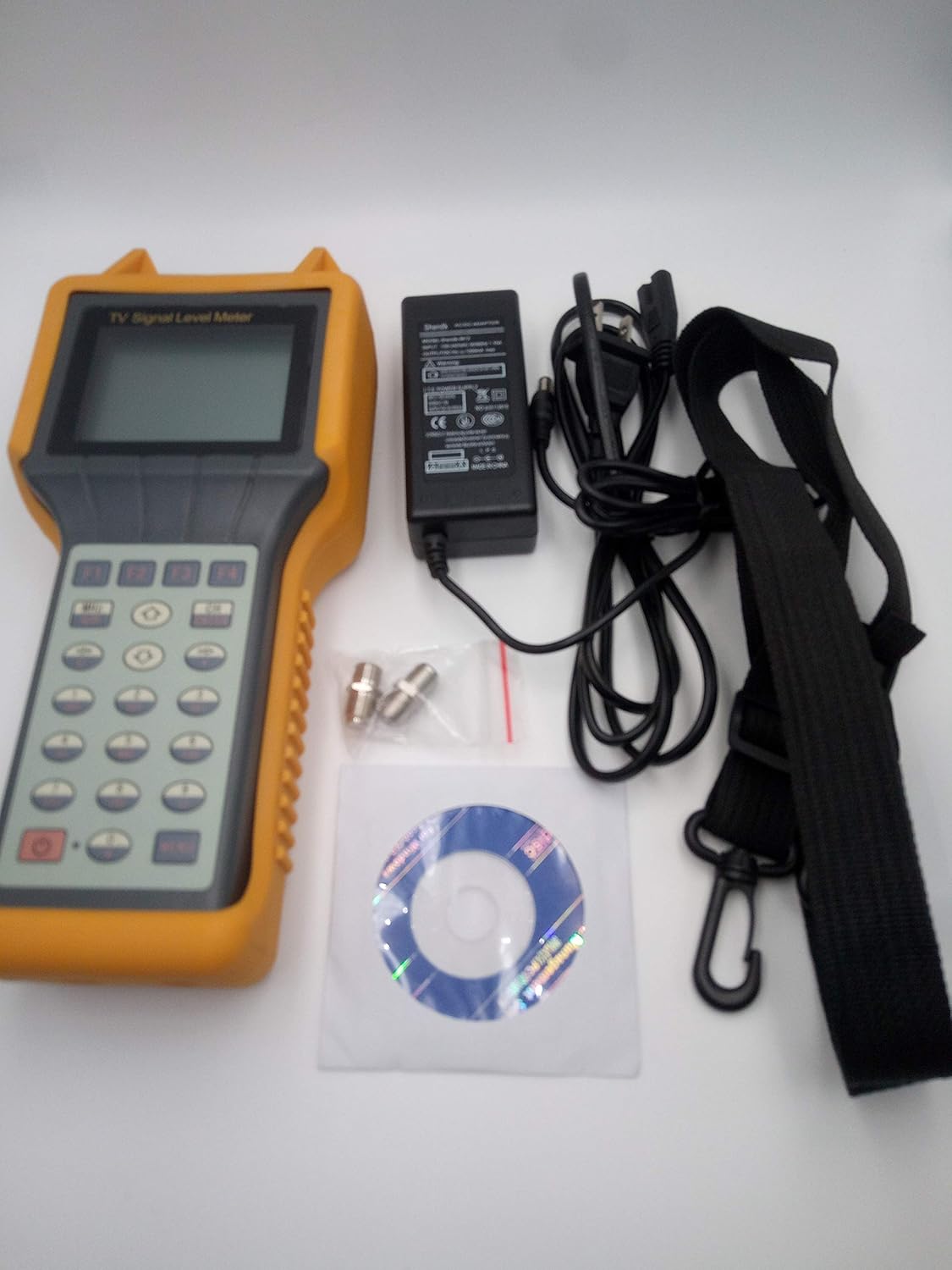

Digital Signal Level Meter Cable TV Tester C88590
Sale price
$39.99
Regular price $147.94
Skip to product information
A test instrument applicable for the maintenance of CATV (Analog, Digital measurement,TILT) system;
Compact, light-weight, easy to carry;
With dual-channel measurement display, it is convenient and pragmatic;
Able to measure MER, BER Signal Level,Channel Power,V/A,C/N,FM,Trunk Voltage
Channel and single frequency mode.
Tools & Home Improvement Electrical Testers
Digital Signal Level Meter Cable TV Tester C88590
Sale price
$39.99
Regular price $147.94
Shipping calculated at checkout.
A test instrument applicable for the maintenance of CATV (Analog, Digital measurement,TILT) system;
Compact, light-weight, easy to carry;
With dual-channel measurement display, it is convenient and pragmatic;
Able to measure MER, BER Signal Level,Channel Power,V/A,C/N,FM,Trunk Voltage
Channel and single frequency mode.
Technical Data
Model: RY-S200D
MER, BER, Tilt , A/V, C/N, Average Power, Trunk line Voltage
Digital DVB
Frequency scope: 5~870MHz
Modulation: DVB-C/ITU-T
Support: 64QAM/256QAM(option)
Digital average power: 30dBuV ~ 110dBuV
Precision: +2dB
Symbol rate: 1MS/S-7 MS/S
Modulate error rate(MER): 22dB ~ 39dB
Bit error rate(BER): RS 1E-3~1E-9
Analog TV
Frequency scope: 46/5~870MHz
Level: 20dBuV ~ 120dBuV
Precision: +1.5dB
Channel scan: 150
Power supply
Battery: 7.2V/1500mAH rechargeable battery
AC Supply: AC 90V-220V 50Hz-60Hz
Working time: 6h
Charging time: 3h
